Section 7, redrawn · Oscillator and power

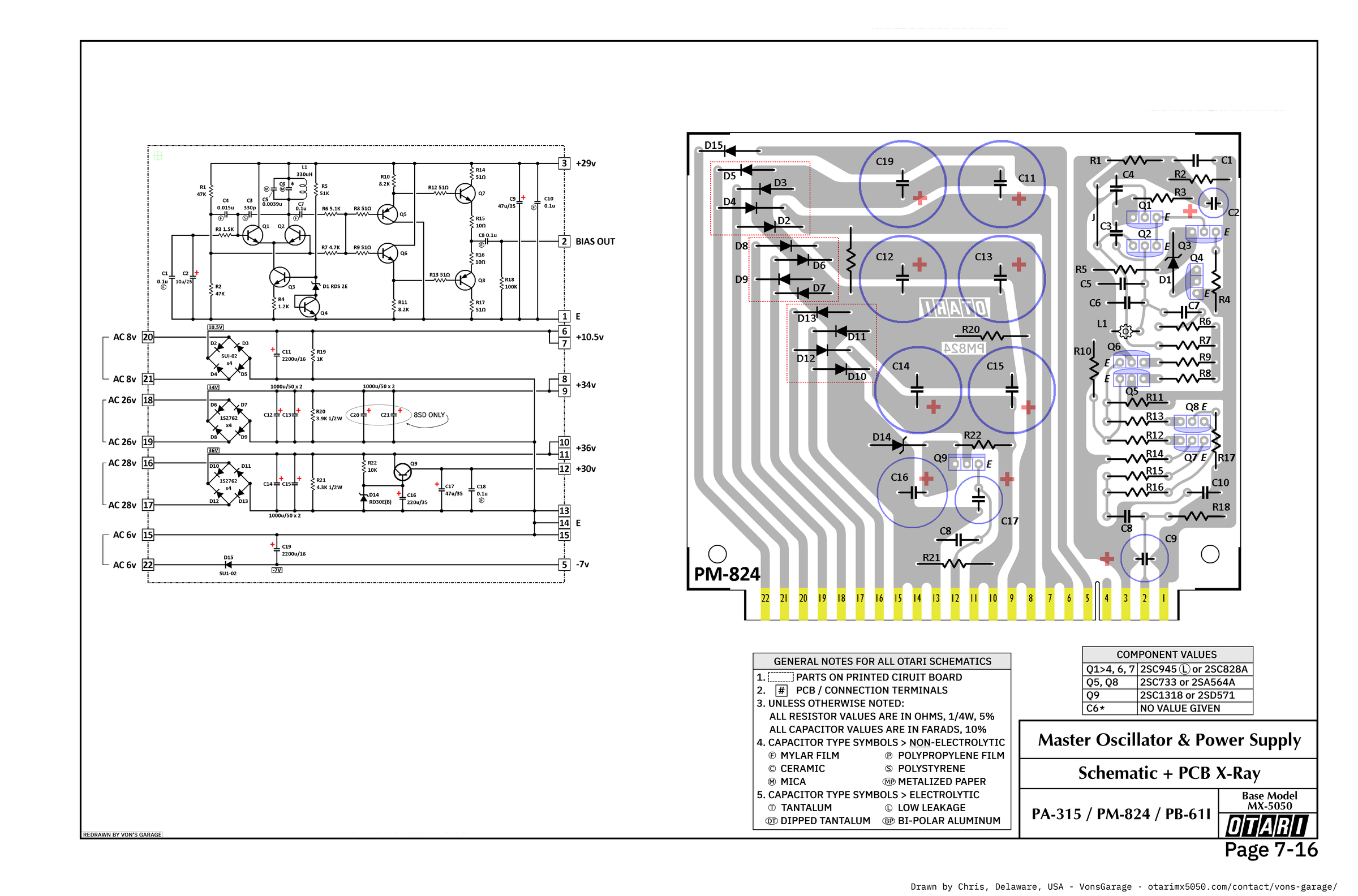

7-16 PCB & Schematic - Master Oscillator + Power Supply

⤢ zoom7-16 PCB & Schematic - Master Oscillator + Power Supply

Image from his PNG export

Download full size (PNG)
