MX-5050BII Instruction Manual — Digital Edition · Part 9 · scan pages 92-110

Exploded View Drawings and Parts Lists

The followings are the exploded view drawings and parts lists. Parts list titles are followed by a key number which refers to the corresponding exploded view drawing number.

When ordering parts, give a full description, using both the part number and the name of the part. If there seems to be a discrepancy between the drawings herein and your machine, contact OTARI.

OVERALL [1]:↑ TOP

Ref. No.DescriptionParts No.Notes
1- 1Reel Ass'yKW-4J
2Head Ass'yKH-41I
3Pinch Roller Ass'yKP-4N
4Tension Ass'yKA-4Y
5Capstan Ass'yKC-4X
6Control Switch Ass'yCB-252
7Side Panel Ass'yK105601
8Rear Cover Ass'yK106801
9Tension Arm Ass'yKA-4X
10Impedance Roller Ass'yKI-4J
11Tape Timer Ass'ySR-50
12Rec. & Repro. Amp. Ass'yA1062
13Panel Ass'yK106802
Panel BottomK102906
Angle LK102909
Angle RK102910
BracketK102907
Foot BottomCY4011-A
Escutcheon VentilateCY5001A
14FootCY4013

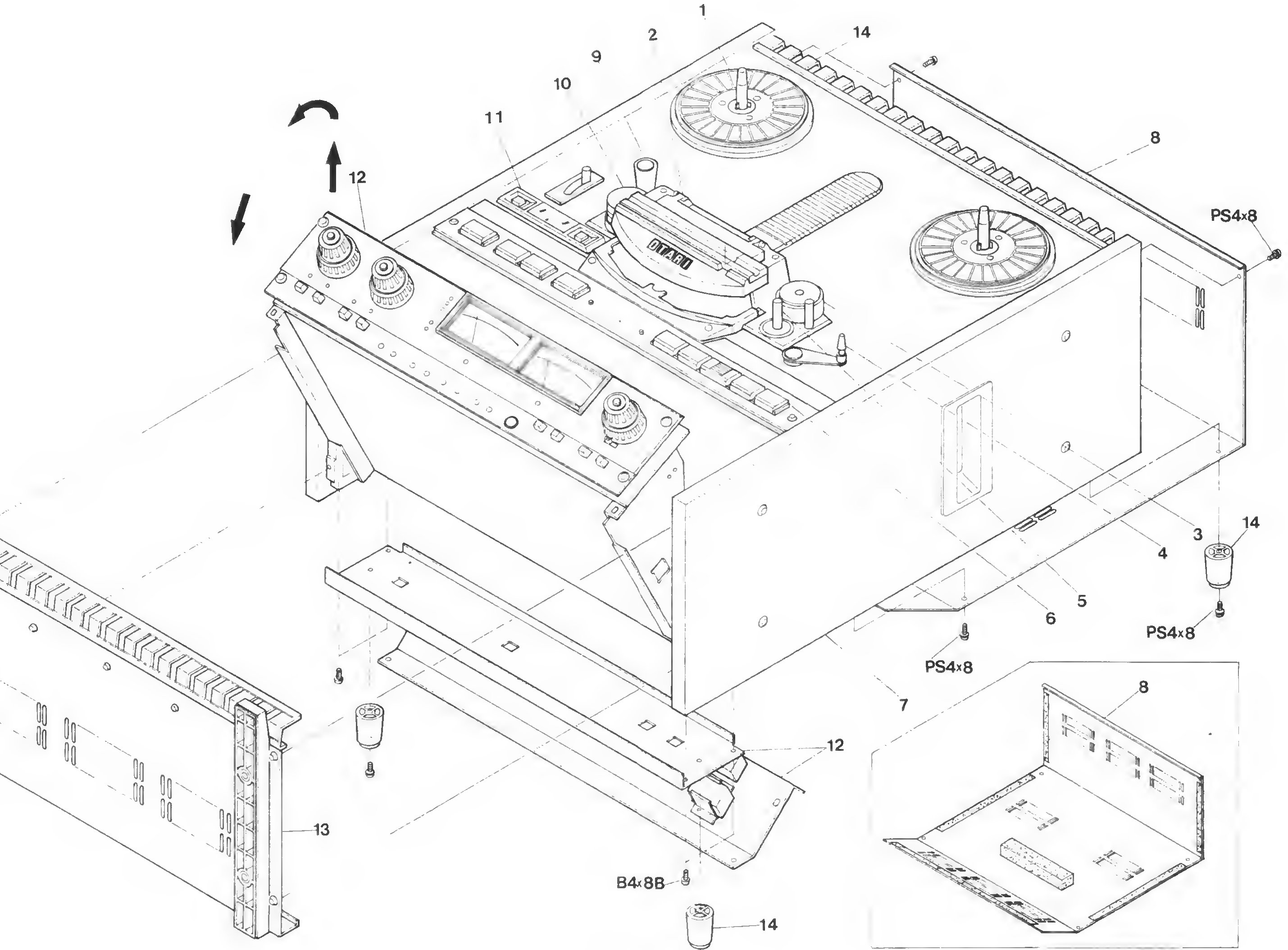

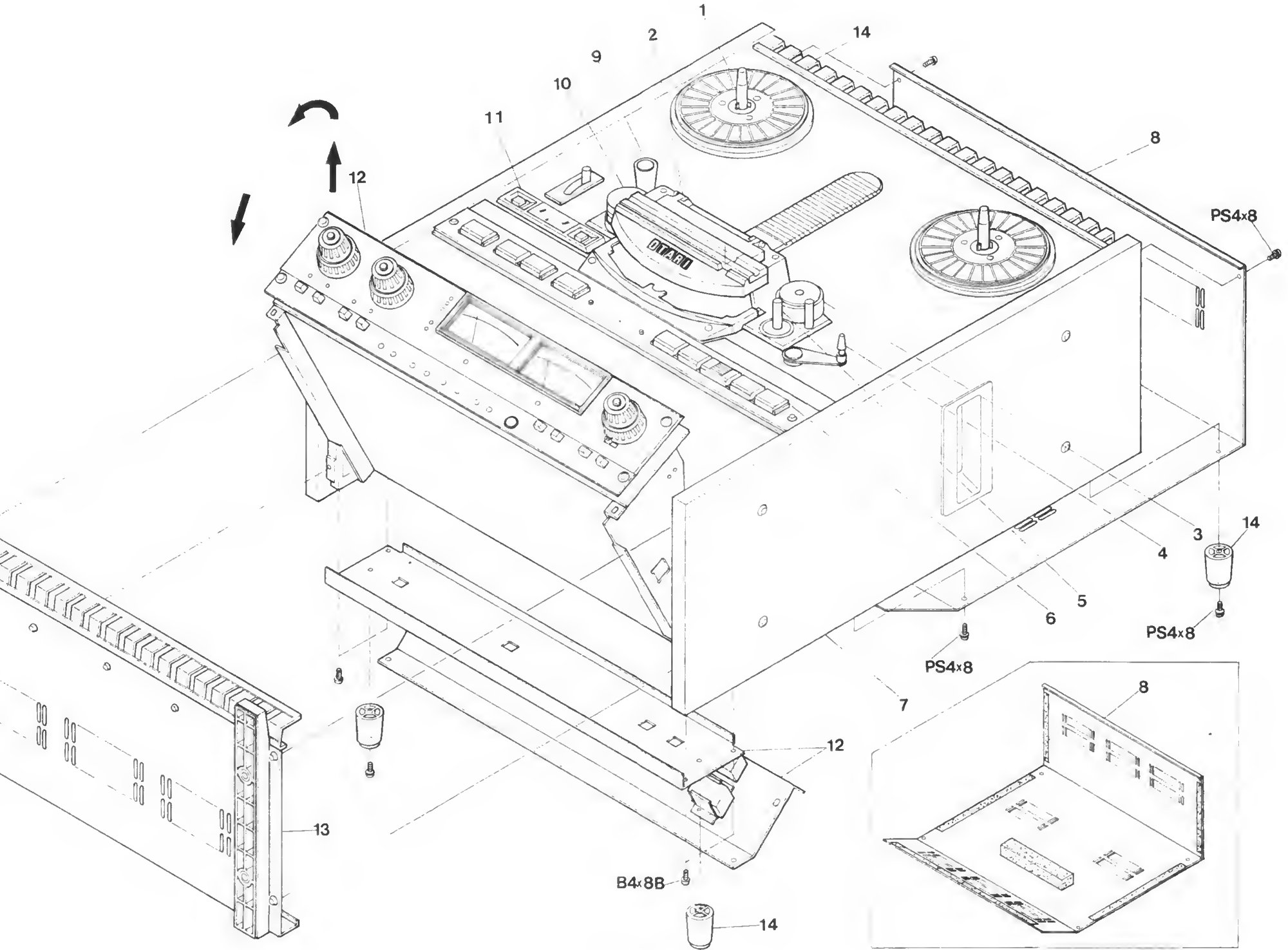

Exploded view of the whole tape transport: reel assemblies, tension arm, capstan, pinch roller, control panel, side and rear covers, and foot.⤢ zoomExploded view of the whole tape transport: reel assemblies, tension arm, capstan, pinch roller, control panel, side and rear covers, and foot.

Full-resolution scan of this sheet

OVERALL [1]:

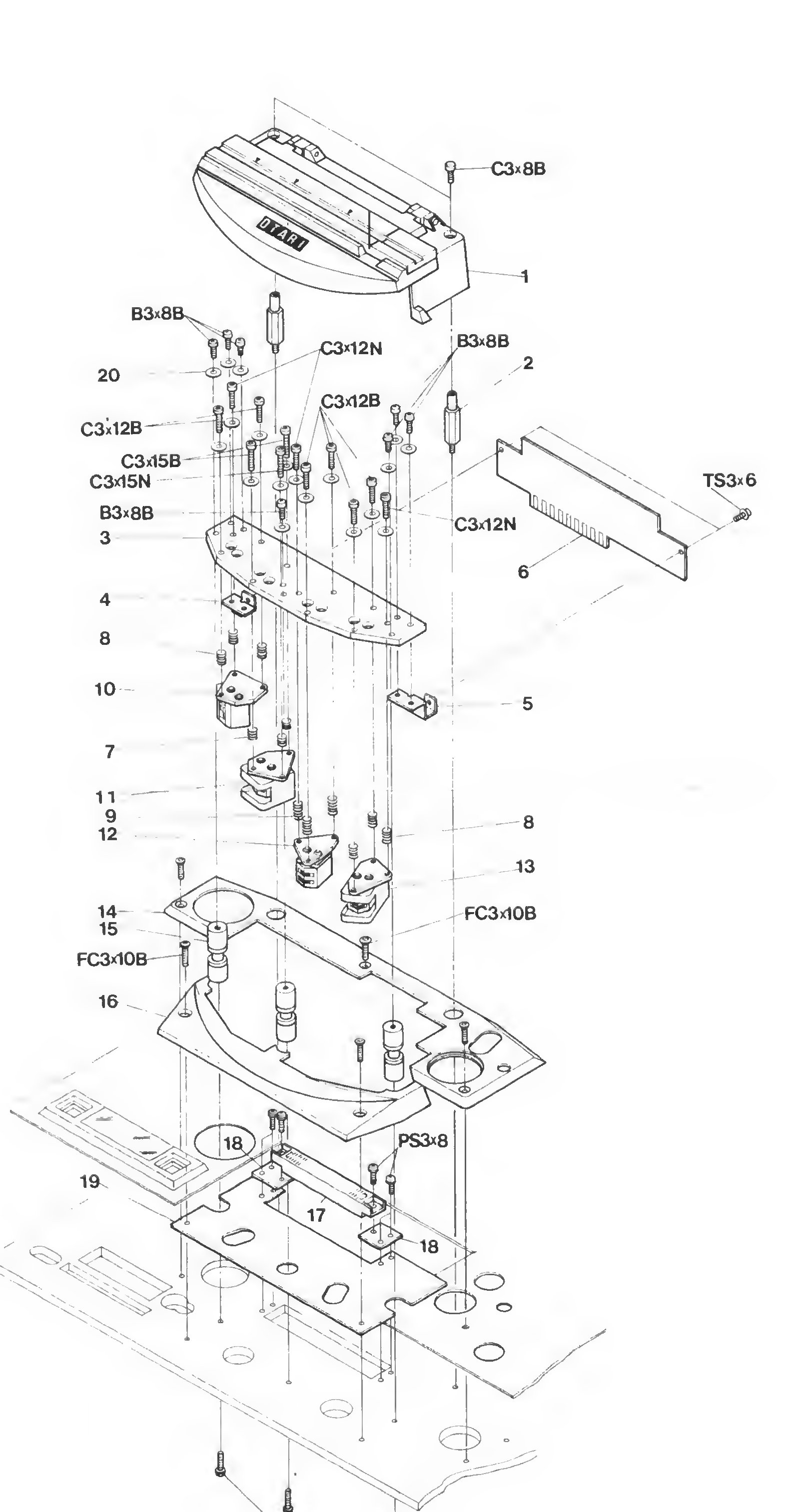

Exploded view of the head housing assembly, showing the mounting bracket, P.C.B. brackets and head sub-assemblies.⤢ zoomExploded view of the head housing assembly, showing the mounting bracket, P.C.B. brackets and head sub-assemblies.

Full-resolution scan of this sheet

KH-41I HEAD ASSEMBLY [2]:

KH-41I HEAD ASSEMBLY [2]:↑ TOP

Ref. No.DescriptionParts No.Notes
2- 1Head Housing Ass'yKH-4Y-A
2StudKH4Y009
3Base Plate HeadKH0C019
4Bracket P.C.B. LKH41I01
5Bracket P.C.B. RKH41I02
6P.C.B. Ass'y HeadPB-78I
7Spring HeadGS2019
8Spring HeadGS2016
9Spring HeadGS2015
10Head Ass'y Erase 2T/2CHGH4E082B2T, 2T DIN
4T/2CHGH4E058A4T
FT/MONOGH4E012BFT
11Head Ass'y Repro. 4T/2CHGH4P069C2T
2T/2CHGH4P027AFT, 4T
12Head Ass'y Rec. 2T/2CHGH4R005B2T
4T/2CHGH4R033B4T
FT/MONOGH4R057AFT
2T/2CHGH4R100D2T DIN
13Head Ass'y Repro. 2T/2CHGH4P027A2T
4T/2CHGH4P069C4T
FT/MONOGH4P056BFT
2T/2CHGH4P099C2T DIN
2T 2CH Head Sub. Ass'yKH-41IA
4T 2CH ."KH-41TA
FT MONO "KH-41OA
2T 2CH DIN "KH-41QA
14Cover Housing AKH0F038
15Guide TapeKG0D00C
16Housing HeadKH0F037
17ConnectorCN314002
18Bracket ConnectorKH4Y004
19Plate ShieldKH4Y001A
20Washer PolysliderF524-3

T5067 TAPE DECK ASSEMBLY [3]:↑ TOP

Ref. No.DescriptionParts No.Notes
3- 1Panel TrimT5064-A
2Pole GuideKG6E003
3Panel TopT506701
4Panel Trim ControlT506702
5Panel Top ControlT506705
6Bracket CK102911
7Transformer PowerTF11073
8Clumper CordPZ1G053
9P.C.B. Ass'y LEDPB-83E
10BlindPZ1B051
11BlindPZ1B052
12Frame DeckT506104
13FrameKZ1A050
14Bracket P.C.B. LT506704
15Bracket P.C.B. RT506703
16P.C.B. Ass'y ControlPB-46Q
17ProtectorPZ1G027
18Bracket P.C.B.T506706
19Bracket BT506711
20Bracket AT506710
21DamperPZ1C031
22StudKZ9P160B
23SpacerKZ9P030B
24SpacerKA6A021
25WasherKZ6C011
26StudKZ9C060B
27BracketKZ3A068
28Washer DecorationKZ6C051

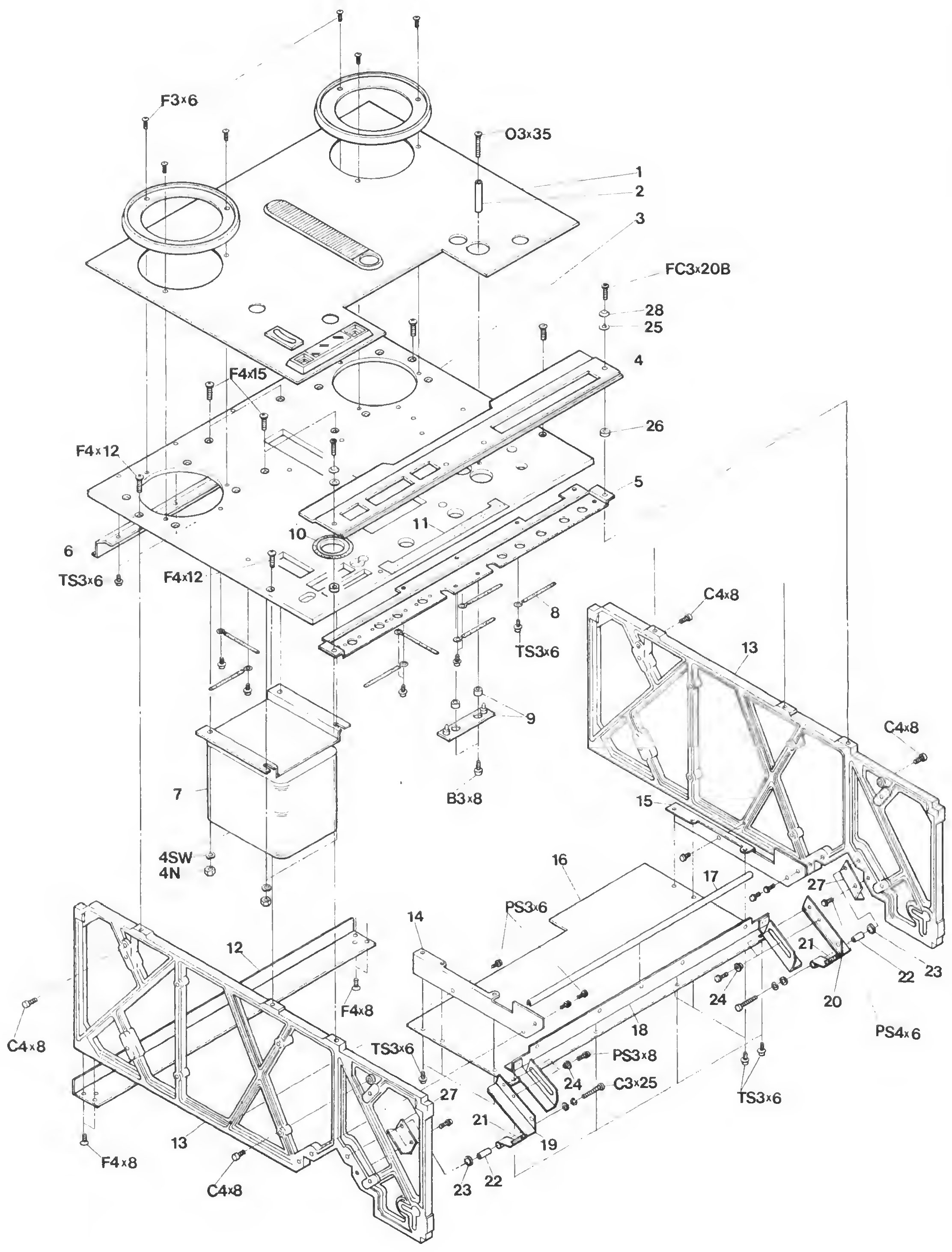

Exploded view of the deck top plate, control panel, LED board and side frames.⤢ zoomExploded view of the deck top plate, control panel, LED board and side frames.

Full-resolution scan of this sheet

T5067 TAPE DECK ASSEMBLY [3]:

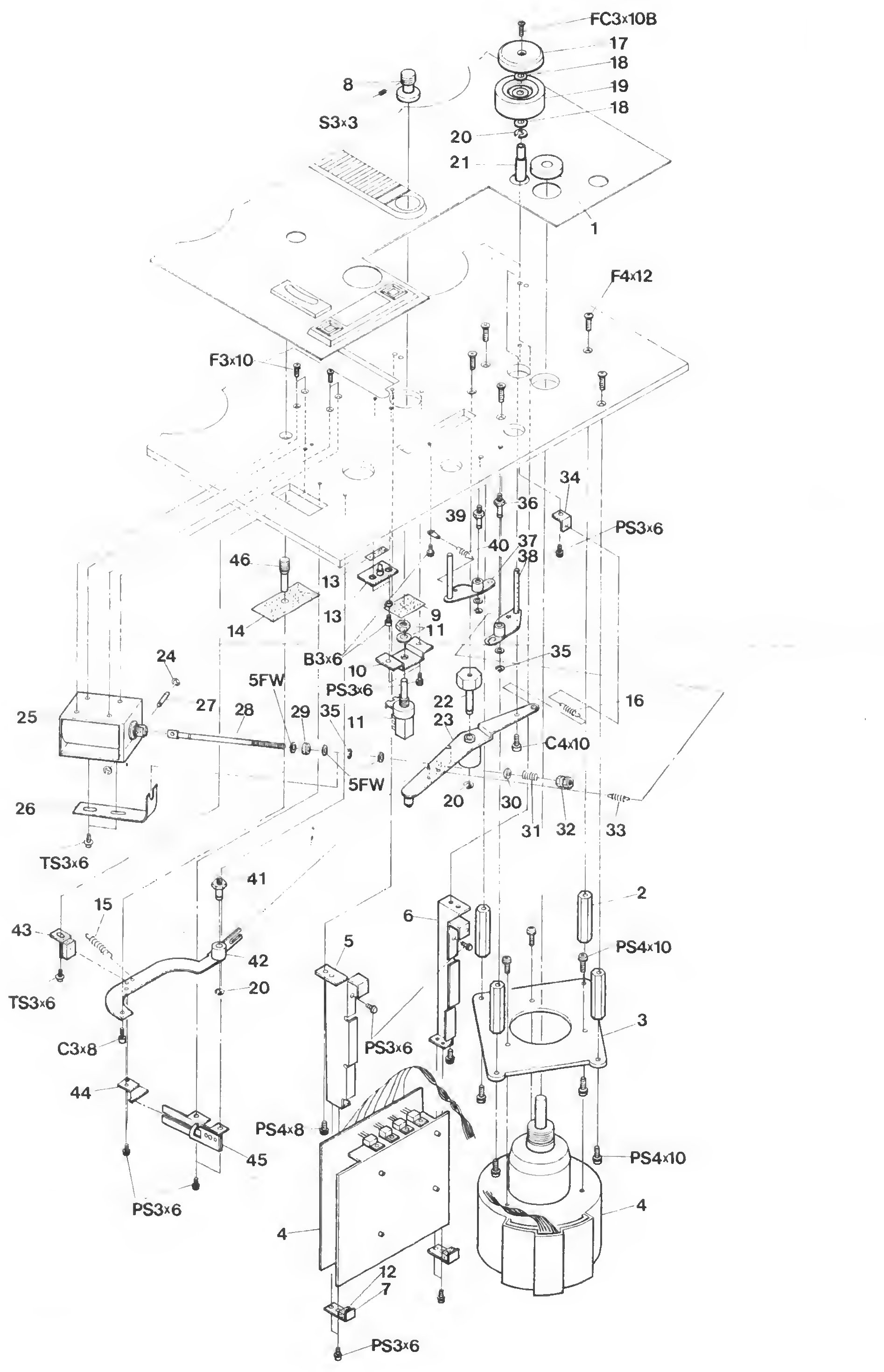

Combined exploded view of the capstan motor and P.C.B. bracket, the pinch-roller and solenoid mechanism, and the shifter-arm and cue-lever linkage.⤢ zoomCombined exploded view of the capstan motor and P.C.B. bracket, the pinch-roller and solenoid mechanism, and the shifter-arm and cue-lever linkage.

Full-resolution scan of this sheet

KC-4X CAPSTAN ASSEMBLY [4]:
KP-4N PINCH ROLLER ASSEMBLY [4]:
KP-4L SHIFTER ASSEMBLY [4]:

KC-4X CAPSTAN ASSEMBLY [4]:↑ TOP

KP-4N PINCH ROLLER ASSEMBLY [4]:↑ TOP

KP-4L SHIFTER ASSEMBLY [4]:↑ TOP

Ref. No.DescriptionParts No.Notes
4- 1Cap DustKCB011A
2StudKZ9I455A
3Bracket MotorKC4H001
4Motor DCMR5A021
5Bracket P.C.B. LKC4X001
6Bracket P.C.B. RKC4X002
7SupporterKZ3A107
8KnobKN1024A
9BlindPZ1B037
10Plate Mounting PotentiometerKC4H002
11PotentiometerRV252009
12DamperPZ1C011
13P.C.B. Ass'y LEDPB-83C
14BlindPZ1B001
15SpringGS1033
16SpringGS1011
17Cap Pinch RollerKP0C020
18WasherF523-6
19Pinch RollerKP0A007
20Ring EF74TE20
21Shaft Pinch RollerKP0B010
22Shaft ArmKP4L001
23Arm Ass'y Pinch RollerKP-4N-A
24Ring EF74TE09
25SolenoidGP1B10
26StopperKZ2A016
27Pin SolenoidKZ5A003
28Screw AdjustKZ6A022
29DamperPZ1C021
30Washer TrimKP0G004
31SpringGS2003
32Nut LockF517-4
33SpringGS1028-A
34Plate SpringKZ3A023
35Ring EF74TE15
36Shaft ArmKR4B001
37Arm Shifter AKR0B005
38Arm Shifter BKR0B006
39Terminal SolderCN7D-002
40SpringGS1087
41Shaft ArmKR4B007
42Arm CueKR4C001
43Stopper Ass'yKR-4L-A
44HookKR4C003
45Arm LockKR-4C-A
46Lever CueKR4F002A

KA-4X TENSION ARM ASSEMBLY [5]:↑ TOP

KI-4J IMPEDANCE ROLLER ASSEMBLY [5]:↑ TOP

SR-50 TAPE TIMER ASSEMBLY [5]:↑ TOP

Ref. No.DescriptionParts No.Notes
5- 1Cap ArmKA0C005
2Arm TensionKA0A017A
3Shaft ArmKA4J001
4Washer Polly SliderF524-5
5Holder ArmKA0B008
6Guide TapeKG4D007
7NutKZ6D004
8Plate SpringKA0E005
9Actuator Ass'y SwitchKA-4K-B
10Switch MicroWH51027
11Magnet Ass'yKA-4K-A
12SpringGS1048
13Bracket SpringKZ3A024
14Bracket SpringKA0E017
15Stopper ArmKA4X001
16SpringGS1025
17Sub Ass'y Impedance RollerKI-4J-A
Roller Ass'yKI-4J-B
HolderKI0B014
WasherKI0H024
Nut HolderKI0H025
BearingBA1Z022
18BossKI4F001A
19EncoderKI4G003
20P.C.B. Ass'y Direction DetectionPB-82M
21P.C.B. Ass'y BracketKI4G002
22Sheet InsulationSR5K002
23P.C.B. Ass'y TimerPB-82L
24ButtonKN2067
25BlindPZ1B053
26Bracket SwitchSR5K001
27Switch PushWH12149
28Bracket P.C.B.KZ3A106
29P.C.B. Ass'y Timer DrivePB-46R

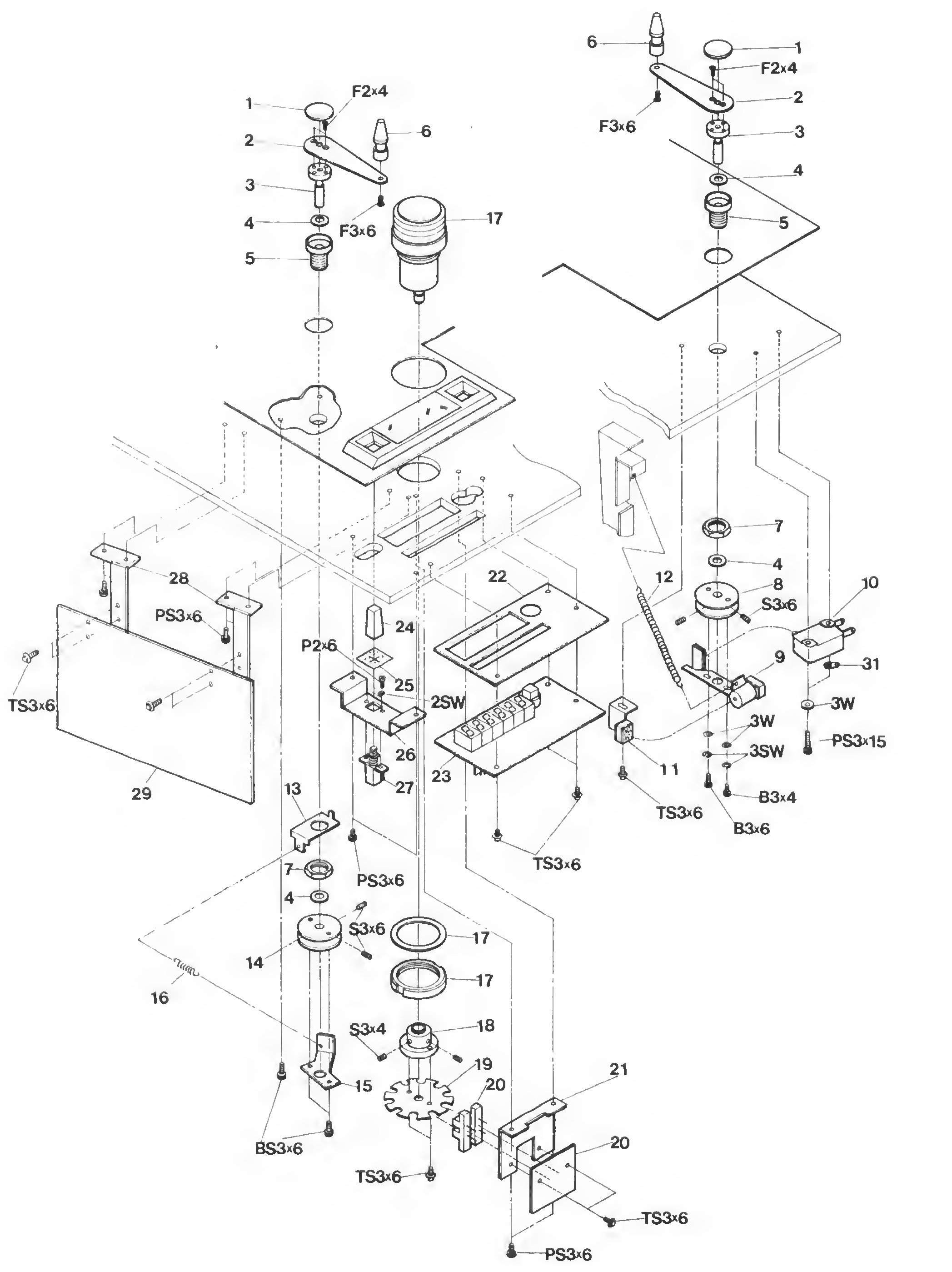

Combined exploded view of the tension-arm assembly, the impedance-roller assembly and the tape-timer assembly.⤢ zoomCombined exploded view of the tension-arm assembly, the impedance-roller assembly and the tape-timer assembly.

Full-resolution scan of this sheet

KA-4X TENSION ARM ASSEMBLY [5]:
KI-4J IMPEDANCE ROLLER ASSEMBLY [5]:
SR-50 TAPE TIMER ASSEMBLY [5]:

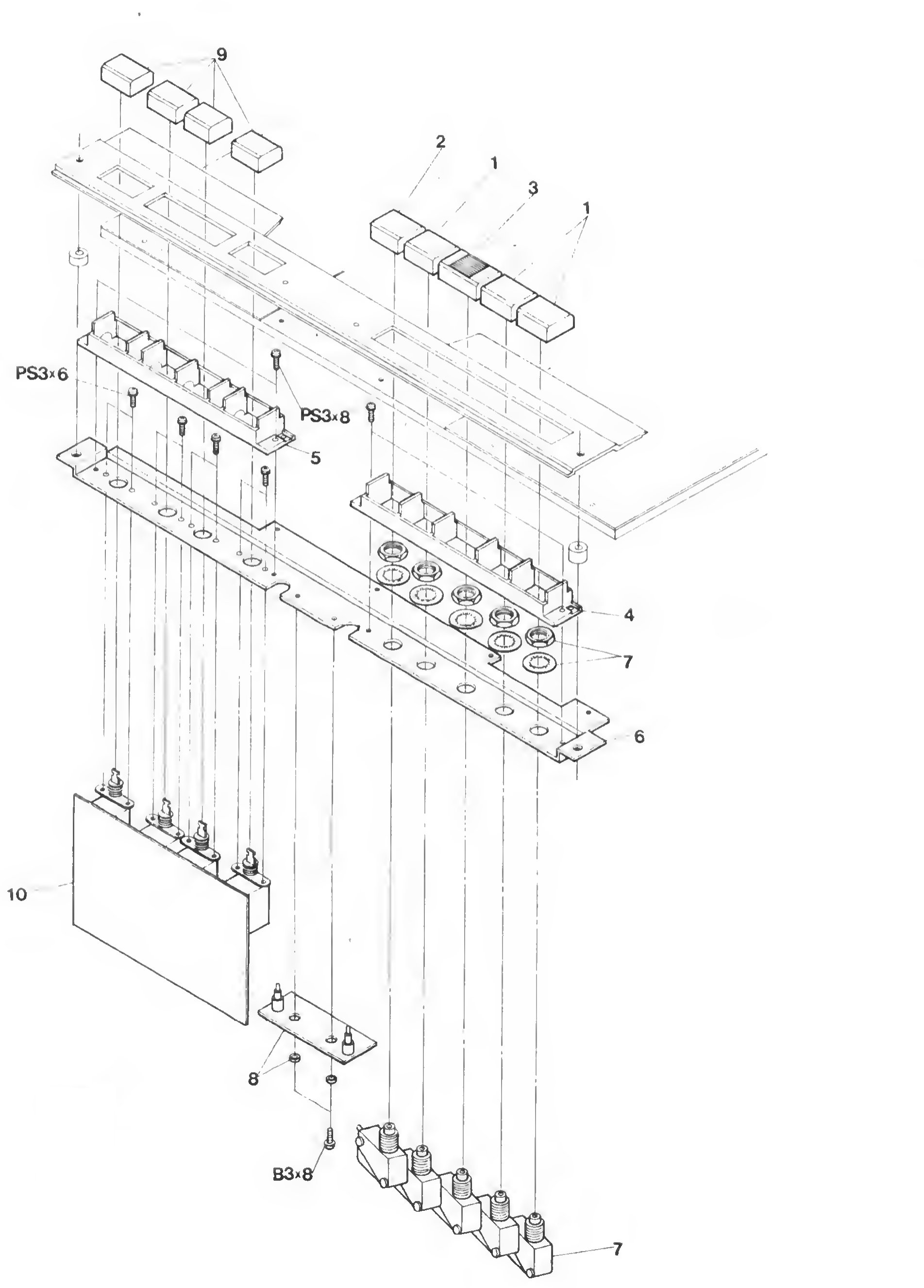

Exploded view of the control switch assembly, showing the button caps, switch block and connector strip.⤢ zoomExploded view of the control switch assembly, showing the button caps, switch block and connector strip.

Full-resolution scan of this sheet

CB-252 CONTROL SWITCH ASSEMBLY [6]:

CB-252 CONTROL SWITCH ASSEMBLY [6]:↑ TOP

Ref. No.DescriptionParts No.Notes
6- 1Button AKN2069
2Button BKN2070
3Button CKN2071
4GuideCB20602
5GuideCB20701
6Panel Top ControlT506705
7Switch MicroWH11007
8P.C.B. Ass'y LEDPB-83E
9ButtonKN2072
10P.C.B. Ass'y SwitchPB-78HB

KW-4J REEL ASSEMBLY [7]:↑ TOP

Ref. No.DescriptionParts No.Notes
7- 1Nails Reel DriveKW0E038
2Reel TableKW4J002
3Drum ReelKW0B017Ass'y
Nails Reel DriveKW0E038
4Protector ReelKW0H007A
5Bracket Reel MotorKW0G016
6Motor ReelMR1C012
7Capacitor Reel MotorCZ10023Ass'y PB-73R
P.C.B. CapacitorPB9A179
8Bracket L CapacitorKW4B003
9Bracket R CapacitorKW4B004
10Bracket L BrakeKW0G013
11Bracket R BrakeKW0G012
12Ring EF74TE09
13Band Brake Ass'yKW-4E-A
14Spring BrakeGS1024
15Clamp BrakeKZ3A047
16Pin SolenoidKZ5A003
17Retainer BrakeKW4B001
18Drum BrakeKW0A012
19Solenoid BrakeGP1F02
20CushionPZ1B049
21Ring EF74TE15
22Arm BrakeKW0D014
23PinF63316

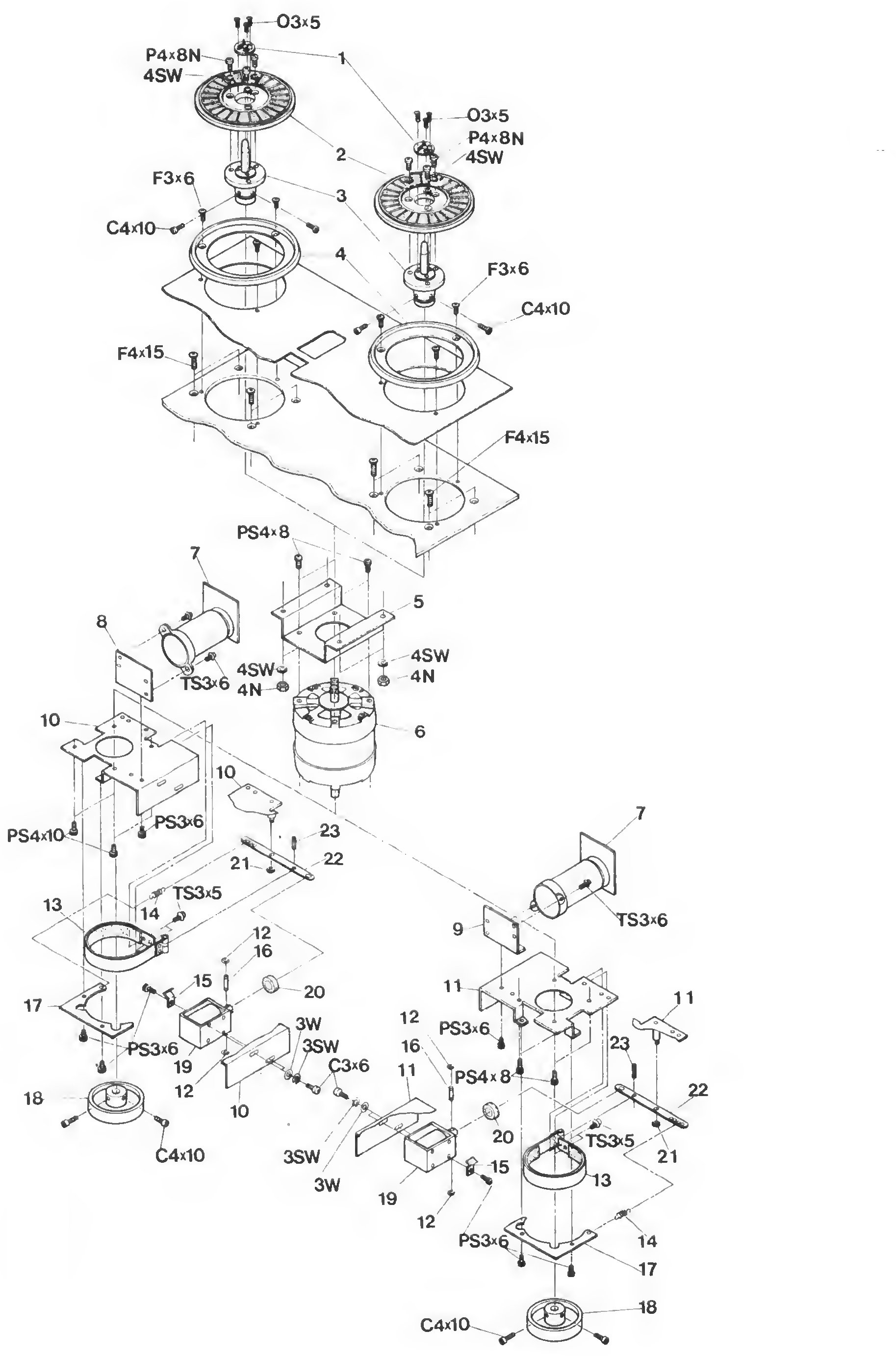

Exploded view of two mirrored reel, brake and motor sub-assemblies shown side by side.⤢ zoomExploded view of two mirrored reel, brake and motor sub-assemblies shown side by side.

Full-resolution scan of this sheet

KW-4J REEL ASSEMBLY [7]:

CB-705 CONNECTOR PANEL ASSEMBLY [8]:↑ TOP

Ref. No.DescriptionParts No.Notes
8-1Panel ConnectorCB70501
2Connector FemaleCN103046
3Connector MaleCN103045
4Inlet ACCN603012
5Connector MaleCN7C-006
6Terminal GroundCN901040
7Rear PanelA106204

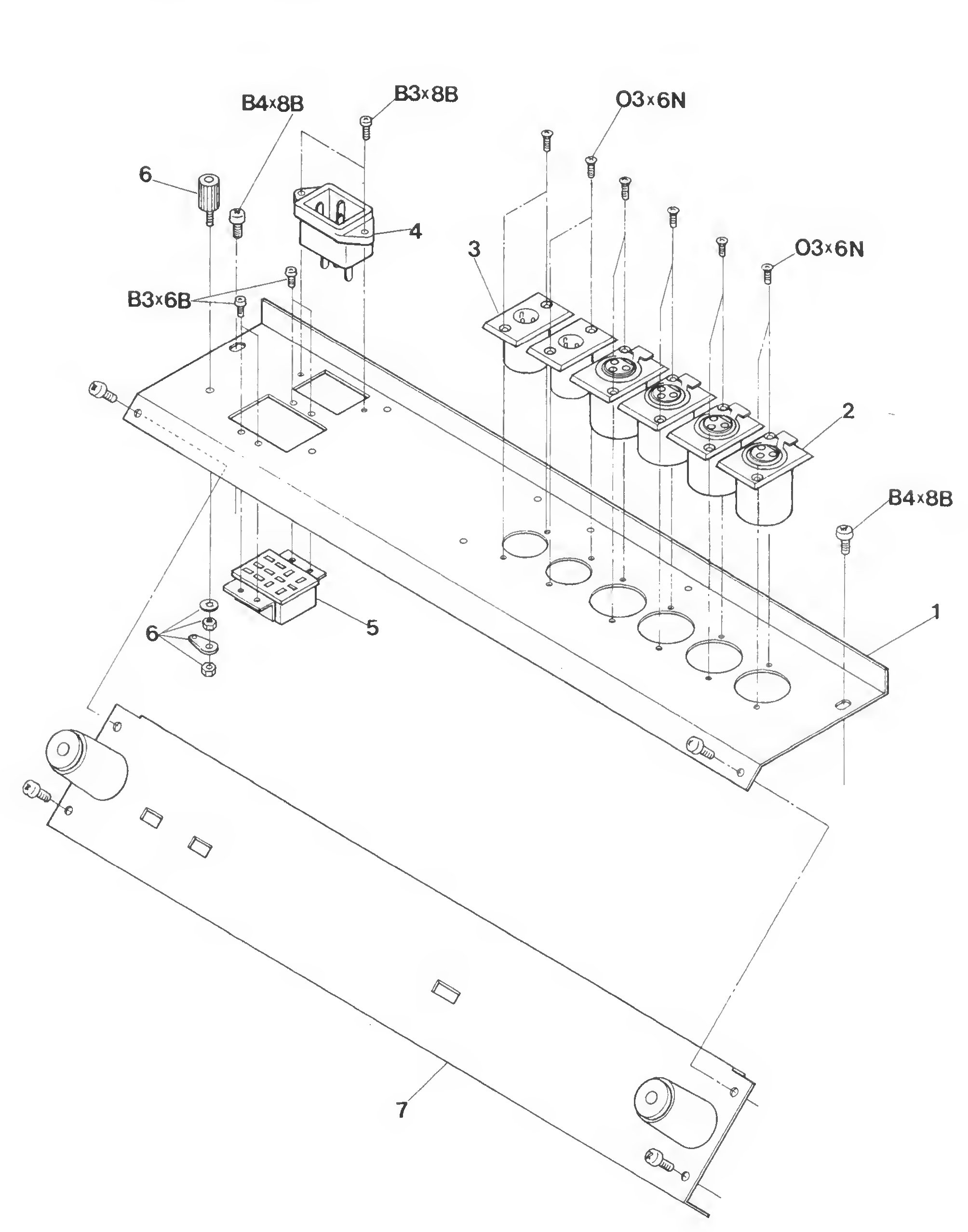

Exploded view of the rear connector panel, showing the AC inlet, XLR connectors and terminal strip.⤢ zoomExploded view of the rear connector panel, showing the AC inlet, XLR connectors and terminal strip.

Full-resolution scan of this sheet

CB-705 CONNECTOR PANEL ASSEMBLY [8]:

A1062 REC & REPRO AMP. ASSEMBLY [9]:↑ TOP

Ref. No.DescriptionParts No.Notes
9- 1Cap KnobKN1058
2Cap KnobKN1052
3Knob EKN1065
4Knob DKN1063
5Panel Ass'y TrimA1062-A
6Panel Top Amp.A106201
7Frame R Amp.A102807
8Frame L Amp.A102808
9Bracket P.C.B.A106206
10Meter VUME11005
11BlindPZ1B013
12BlindPZ1B012
13BlindPZ1B010
14Button YellowKN1060
15Button BlackKN1061
16Button OrangeKN1076
17PotentiometerRV224083
18Jack PhoneCN602144
19Switch SlideWH340013
20P.C.B. Ass'y Rec. & PB Amp.PB-16EB
21P.C.B. Ass'y VU Amp.PB-16D
22SpacerKZ6C017
23P.C.B. Ass'y LED (F)PB-83BB
24P.C.B. Ass'y LED (C)PB-81J
25P.C.B. Ass'y LED (D)PB-83AB
26P.C.B. Ass'y LED (E)PB-813D
27P.C.B. Ass'y REC EQPB-81Q
28ScrewE27308SBM3X8
29ScrewF27325SB
30Washer DecorationKZ6C051
31WasherKZ6C011
32AxileA102809

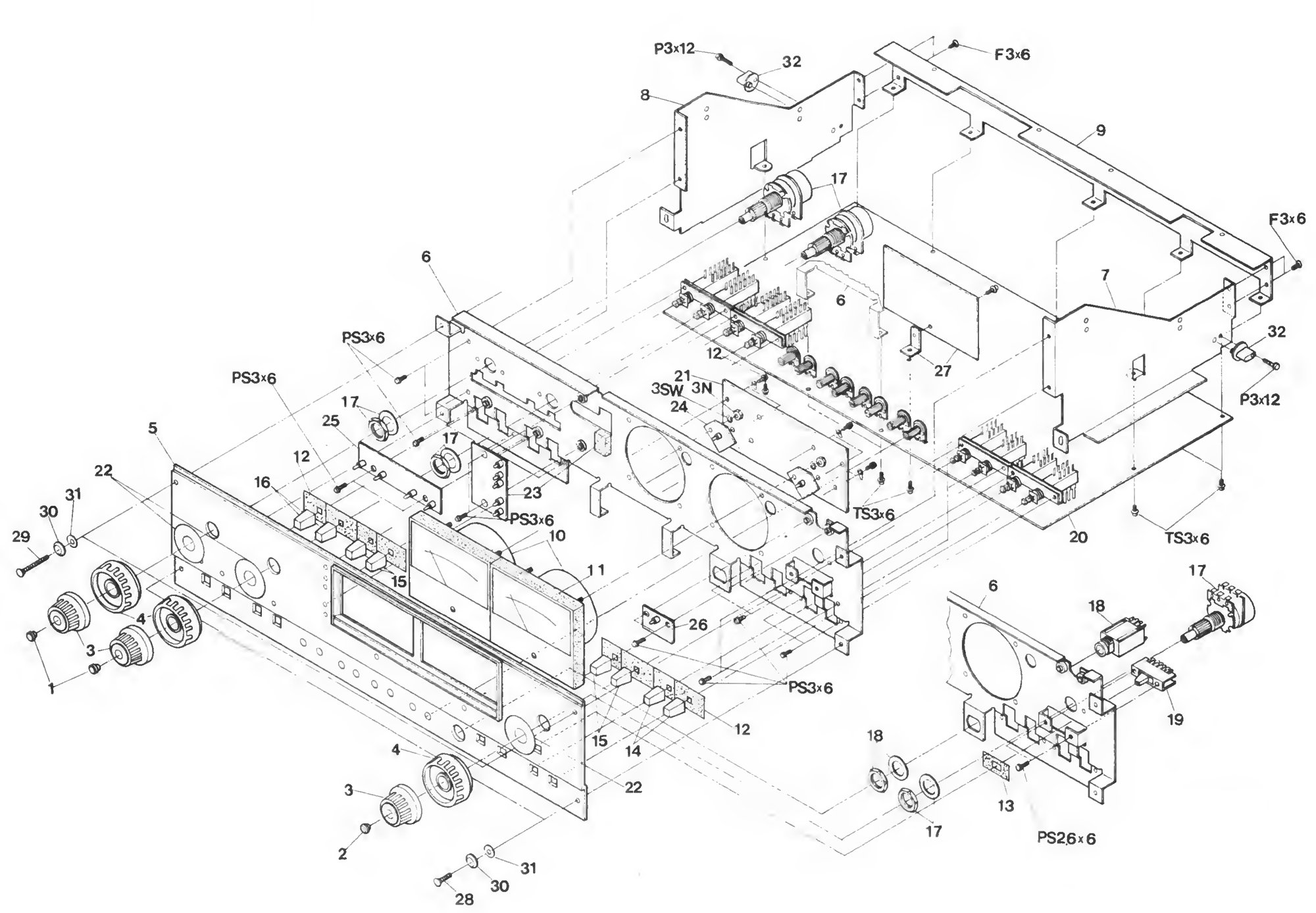

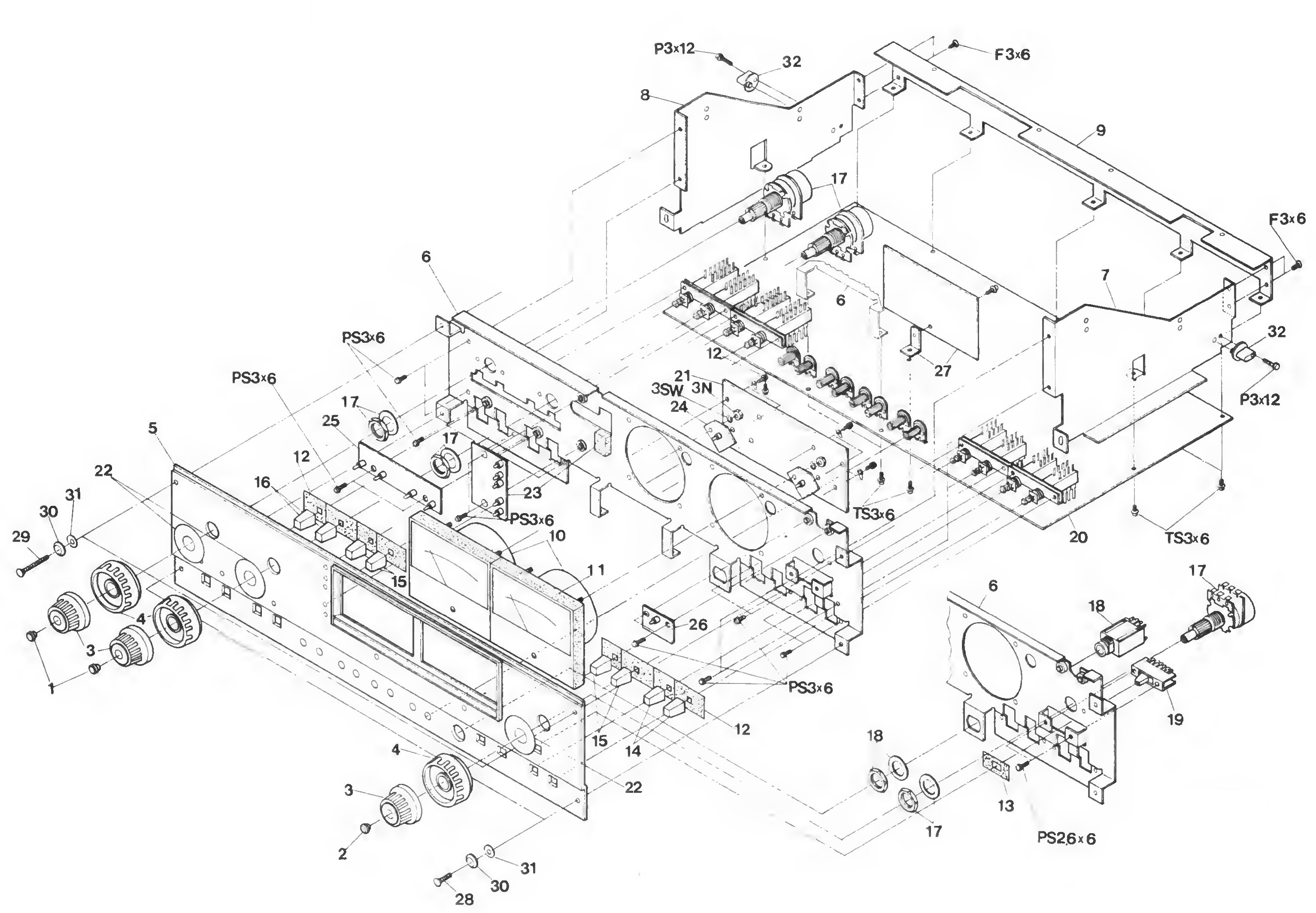

Exploded view of the record/reproduce amplifier assembly: front panel knobs, VU meter, LED boards and rear P.C.B. mounts.⤢ zoomExploded view of the record/reproduce amplifier assembly: front panel knobs, VU meter, LED boards and rear P.C.B. mounts.

Full-resolution scan of this sheet

A1062 REC & REPRO AMP. ASSEMBLY [9]:
