Parts No.OS3-031

The OTARI wordmark in block letters with a registered-trademark symbol.⤢ zoomThe OTARI wordmark in block letters with a registered-trademark symbol.

MX-5050 BQII
PROFESSIONAL RECORDER

INSTRUCTION AND MAINTENANCE MANUAL

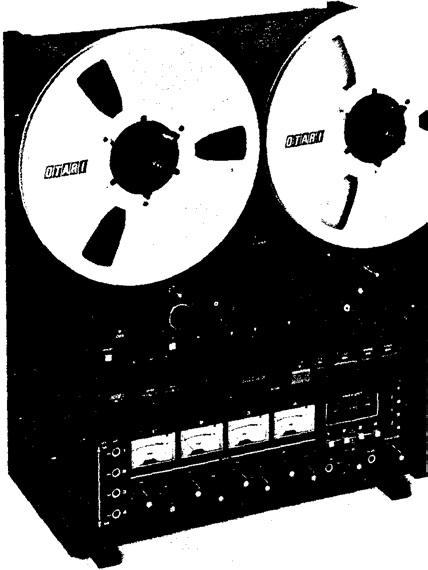

An MX-5050 BQ II tape recorder in its upright console cabinet, with two OTARI-branded 10½-inch reels above a control panel carrying four VU meters.⤢ zoomAn MX-5050 BQ II tape recorder in its upright console cabinet, with two OTARI-branded 10½-inch reels above a control panel carrying four VU meters.

Edition No.2
Issued:November 1983

CAUTION

To prevent fire or shock hazard:

Do not expose this appliance to rain or moisture.

Do not remove back.

No user-serviceable parts inside.

Refer servicing to qualified service personnel.

SAFETY INSTRUCTIONS↑ TOP

  1. Read Instructions -- All the safety and operating instructions should be read before the appliance is operated.

  2. Retain Instructions -- The safety and operating instructions should be retained for future reference.

  3. Heed Warnings -- All warnings on the appliance and in the operating instructions should be adhered to.

  4. Follow Instructions -- All operating and use instructions should be followed.

  5. Water and Moisture -- The appliance should not be used near water - for example, near a bathtub, washbowl, kitchen sink, laundrytub, in a wet basement, or near a swimming pool, etc.

  6. Carts and Stands -- The appliance should be used only with a cart or stand that is recommended by the manufacturer.

  7. Ventilation -- The appliance should be situated so that its location or position does not interfere with its proper ventilation.

    For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

  8. Heat -- The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

  9. Power Sources -- The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.

  10. Grounding or Polarization -- The precautions that should be taken so that the grounding or polarization means of an appliance is not defeated.

  11. Power-Cord Protection -- Power-supply cords should be routed so that they are not likely to be walked on pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

  12. Cleaning -- The appliance should be cleaned only as recommended by the manufacturer.

  13. Nonuse periods -- The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.

  14. Object and Liquid Entry -- Care should be taken so that objects do not fall and liquids are spilled into the enclosure through openings.

  15. Damage Requiring Service -- The appliance should be serviced by qualified service personnel when:

    A. The power-supply cord or the plug has been damaged; or

    B. Objects have fallen, or liquid has been spilled into the appliance; or

    C. The appliance has been exposed to rain; or

    D. The appliance does not appear to operate normally or exhibits marked change in performance; or

  16. Servicing -- The user should not attempt to service the appliance beyond that described in the operating instructions.

    All other servicing should be referred to qualified service personnel.

MX-5050 BQII
PROFESSIONAL TAPE RECORDER

INTRODUCTION↑ TOP

This manual provides descriptive information, installation, operation, maintenance and normal adjustment instructions for the Otari MX-5050 BQII Professional Tape Recorder.

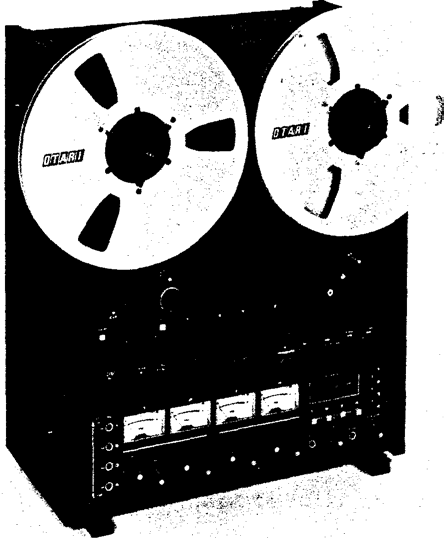

The MX-5050 BQ II in its upright console, seen at an angle, with OTARI reels mounted above the four-meter control panel.⤢ zoomThe MX-5050 BQ II in its upright console, seen at an angle, with OTARI reels mounted above the four-meter control panel.

MX-5050 BQII Recorder

COMMUNICATION WITH OTARI↑ TOP

FOR SERVICE INFORMATION AND PARTS

The OTARI PRODUCTS are manufactured under strict quality control and each unit is carefully tested and inspected prior to shipment from our factory.

If, however, some adjustments or technical support become necessary, replacement parts are required, or technical questions arise, please contact your nearest Otari dealer or write to:

OTARI ELECTRIC CO., LTD.
4-29-18, Minami Ogikubo,
Suginamiku, Tokyo, 167, Japan
Phone: (03) 333-9631
Telex: J26604 OTRDENKI
OTARI CORPORATION
2 Davis Drive, Belmont
California 94002, U.S.A.
Phone: (415) 592-8311
Telex: 25 9103764890
OTARI ELECTRIC DEUTSCHLAND GmbH.
Gielenstrasse 9,
4040 Neuss 1
F.R. Germany
Phone: 02101-274011
Telex: 41 8517691 OTEL D
OTARI SINGAPORE PTE., LTD.
Unit 5350, 2nd floor, Woh Hup
Complex, 5001, Beach Road,
Singapore, 0719
Phone: 294-5370
Telex: 87 36935 RS36935 OTARI
OTARI ELECTRIC (UK) LTD.
Herschel Industrial Centre, Church Street,
Slough SL1 1EL Berkshire, United Kingdom
Phone: (0753) 38261-2
Telex: 849453 OTARI G

Another part of Otari's continuous technical support program for our products, is the continuous revision of manuals as the equipment is improved or modified. In order for you to receive our information and service applicable to your requirements, and for the technical support to function properly, please include the following information, most of which can be obtained from the name plate on the equipment in all correspondences.

  1. Model Number
  2. Serial Number
  3. Date of purchase
  4. Name and address of dealer from whom machine was purchased
  5. Power requirements (voltage and frequency) of the machine
  6. Manual number to which you are referring

Table of Contents↑ TOP

SectionTitlePage
1GENERAL INFORMATION
1-1System Description1-1
1-1-(1)Tape Transport1-2
1-1-(2)Record/Reproduce Electronics1-4
1-2Standard Accessories1-5
1-3Optional Accessories1-5
1-4Specifications1-6
2INSTALLATION
2-1Unpacking and Inspection2-1
2-2Location and Environment2-1
2-3Dimensions2-3
2-4Operating Position2-4
2-5Standard Switch Position on Shipment2-5
2-6Power and Signal Connections2-6
2-6-(1)AC Power Connection2-8
2-6-(2)Signal Connections2-8
3OPERATION
3-1Controls and Indicators3-1
3-2Operating Information3-12
3-2-(1)Using the Reel Hold Down Knobs3-12
3-2-(2)Pre-Operating Procedure3-13
3-2-(3)Reproduction3-15
3-2-(4)Normal Recording3-15
3-2-(5)Recording with Selective Reproduction3-17
3-2-(6)Fast Winding3-18
3-2-(7)Editing and Splicing Tape3-19
4GENERAL INFORMATION OF MAINTENANCE
4-1Test and Maintenance Equipment Requirements4-1
5ROUTINE MAINTENANCE AND CONVERSION INFORMATION
5-1Routine Maintenance5-1
5-1-(1)Cleaning5-1
5-1-(2)Demagnetizing5-3
5-1-(3)Lubrication5-4
5-2Tape Replacement5-6
5-3Equalizer Change5-6
5-4Line Voltage Conversion5-7
5-5Fuse Replacement5-7
6TAPE TRANSPORT MAINTENANCE
6-1Transport Access6-1
6-2Brake Adjustment6-2
6-3Capstan Pinch Roller Pressure Adjustment6-5
6-4Tape Speed Adjustment6-7
6-5Tape Transport Timing Chart6-8
6-6Recording Process Timing Chart6-9
7PERFORMANCE TESTING AND ELECTRONIC ALIGNMENT
7-1General Notice7-1
7-2Test Tapes7-1
7-3Test Conditions7-3
7-4Performance Tests7-3
7-4-(1)Overall Signal-to-Noise7-4
7-4-(2)Overall Distortion Test7-5
7-4-(3)Crosstalk Test7-7
7-4-(4)Erasure Test7-7
7-4-(5)Tape Speed Measurement7-8
7-4-(6)Flutter and Wow Test7-10
7-5Access to Electronics Assembly7-12
7-6Electronic Alignment7-13
7-6-(1)Reproduce System7-13
7-6-(2)Reproduce Head Azimuth Adjustment7-15
7-6-(3)Frequency Response7-16
7-6-(4)SRL (Repro Level) Adjustment7-18
7-6-(5)SEL/REP. Level Adjustment7-18
7-6-(6)Record System7-18
7-6-(7)Record Head Azimuth Adjustment7-18
7-6-(8)Record Bias Adjustment7-19
7-6-(9)Overall Frequency Response7-23
7-6-(10)Monitor Input Level and VU Meter Level Adjustment7-24
7-6-(11)Test Osc Level Adjustment7-25
7-6-(12)Recod Level Adjustment7-26
7-6-(13)Peak Indicator Trigger Level Adjustment7-26
8MAJOR COMPONENT REPLACEMENT
8-1Reel Motor Assembly Replacement8-1
8-1-(1)Reel Table Replacement and Height Adjustment8-1
8-1-(2)Reel Motor Replacement8-2
8-1-(3)Brake Arm Assembly and Brake Solenoid Replacement8-3
8-2Power Transformer Replacement8-4
8-3Capstan Motor Replacement8-4
8-4Pinch Roller Replacement8-5
8-5Head Assembly Replacement8-6
8-5-(1)Description8-6
8-5-(2)Head Stack Replacement8-7
8-5-(3)Record and Reproduce Head Adjustment8-9
8-5-(4)Erase Head Alignment8-9
9TROUBLESHOOTING
9-1Preliminary Procedures9-1
9-2Troubleshooting Hints9-1
10PARTS LISTS AND SCHEMATICS
10-1Safety Component10-2
10-2Assembly Hardware Coding10-3
10-3Parts Lists and Exploded View10-4
10-4Pin Identification10-30

List of Illustrations and Tables↑ TOP

FigureTitlePage
1-1MX-5050 BQII Major Components1-3
2-1Dimensions2-3
2-2Operating Position2-4
2-3MIC ATT2-5
2-4Adjusting Panel2-5
2-5Input/Output Assembly Connector Wiring2-9
3-1Reel Hold Down Knob3-13
3-2Tape Threading3-14
3-3Tape Splicing Block3-20
5-1Lifting the Head Cover5-2
5-2Demagnetizing5-4
5-3Lubrication5-5
5-4Voltage Selection Terminal5-7
5-5Main Power Fuse Location5-8
5-6Internal Fuse Location5-9
5-7Rotating Control P.C.B.5-10
6-1Tape Transport Access6-1
6-2Brake Measurement6-4
6-3Brake Assembly Location6-4
6-4Pinch Roller Pressure Measurement6-6
6-5Pinch Roller Pressure Adjustment6-6
6-6Capstan Servo Control P.C.B.6-7
6-7Control Timing Chart6-8
6-8Recording Process Timing Chart6-9
7-1Filter Schematics7-4
7-2Test Tape Loading7-9
7-3Electronics Access7-13
7-4Reproduce System Block and Level Diagram7-14
7-5Head Assembly7-15
7-6Location of Record/Reproduce Electronics7-17
7-7Overall Frequency Response7-20
7-8Record System Block and Level Diagram7-21
FigureTitlePage
7-9Bias Current v.s. Output and Distortion7-21
7-10Input v.s. Output and Distortion7-22
7-11Location of Record/Reproduce Electronics7-22
7-12Location of AMP. Control Electronics7-25
8-1Reel Motor Mounting8-1
8-2Brake Assembly8-2
8-3Location of DC Servo Capstan Motor8-5
8-4Pinch Roller Removal8-6
8-5Head Assembly8-8
8-6Head Alignment8-8
TableTitlePage
1-1Standard Accessories1-5
1-2Optional Accessories1-5
1-3Specifications1-6
2-1Standard Switch Position on Shipment2-5
2-2Rear Connector Panel2-6
3-1Tape Transport Controls and Indicators3-1
3-2Record/Reproduce Electronics Controls and Indicators3-7
4-1Test and Maintenance Equipment4-1
4-2Flutter Test Tapes4-2
4-3Reproduce Alignment Test Tape4-2
5-1Record Level5-6
5-2Fuse Information5-9
6-1Braking Force Specifications6-3
7-1Signal-to-Noise Specifications7-5
7-2Flutter and Wow Specification7-11
7-3Equalizer Time Constants & Fluxivity7-17
7-4Standard Level7-25
9-1Troubleshooting Hints for Amplifiers9-2
9-2Troubleshooting Hints for Transport9-2
10-1Safety Component10-2
